Coordination of motion
The E-713 motion controller coordinates the motion of up to 3 logical axes. Axis motion is based on up to 3 PiezoWalk® channels and 3 sensor channels. Users can easily command axis motions as the controller handles conversion between axis-related and channel-related values as well as algorithm-based control of PiezoWalk® PICMAWalk walking drives.
Analysis and automation
The flexibly configurable data recorder can be used to record operating data such as motor control, velocity, position, or position error. Execution of macros on the controller facilitates standalone operation.
Fast periodic motion
The integrated wave generator can save periodic motion profiles and output them. During fast periodic motion, such as that typical for scanning applications, for example, it is possible to increase tracking accuracy through optional dynamic digital linearization (DDL) by up to three orders of magnitude.
Extensive software assistance
PI's user software enables fast startup with no programming skills needed as well as graphic depiction of signals and operations. Furthermore, there is an extensive set of drivers available, e.g., for use with C, C++, C#, Python, NI LabVIEW, or MATLAB.
Scope of delivery
The scope of delivery includes the controller and a software package. It is recommended to order PICMAWalk walking drives together with the controller so that the components can be adapted to each other.
Application fields
Microscopy. Automation technology. Positioning tasks in photonics applications and permanent image inspection tasks.
| Basics | E-713 PICMAWalk Controller, 3 axes | |
|---|---|---|

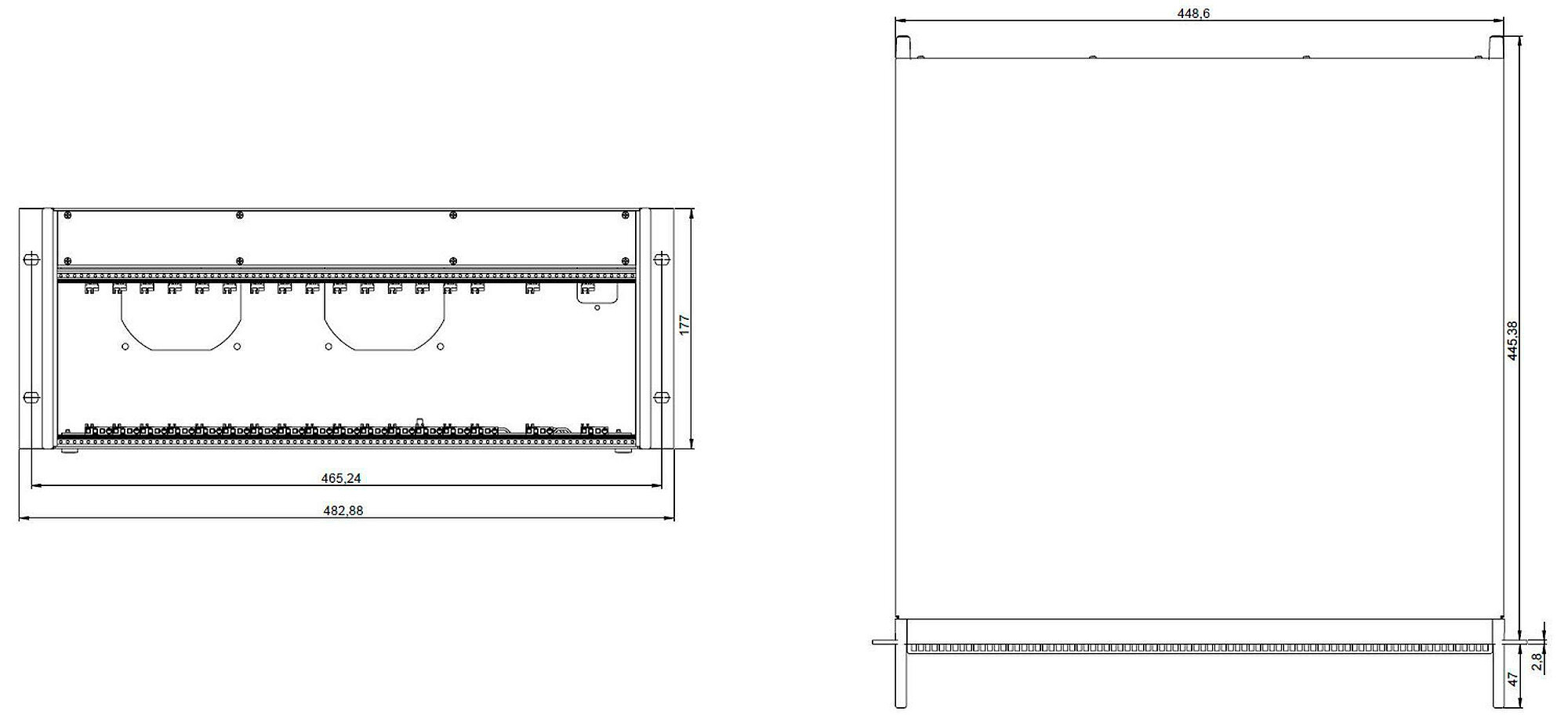

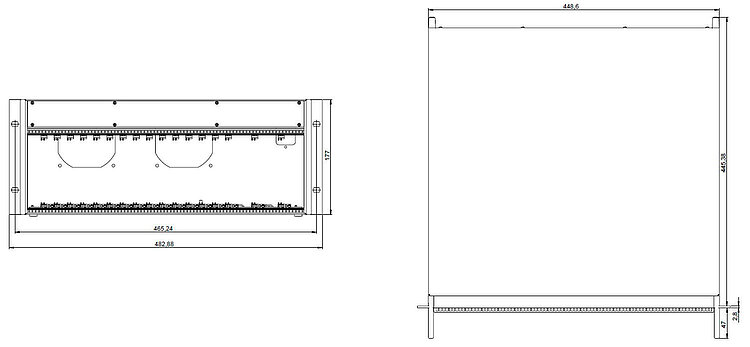

| Housing type | Rack insert 19" 4U | |
| Drive type | PICMAWalk | |
| Axes | 3 | |
| Output channels | 3 | |
| Input channels | 3 | |
| Processor | PC-based | |
| Application-related functions | Makro ǀ Startup macro ǀ Data recorder | |
| Drive functions | AutoZero | |
| Protective functions | Deactivation of the voltage output in case of internal overheating ǀ Switch-off of the servo mode in case of an error ǀ Automatic motor stop | |
| Configuration management | Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input | |
| Supported ID chip | ID chip 2.0 | |
| Motion and control | E-713 PICMAWalk Controller, 3 axes | |
| Supported sensor signal | Sin/cos, 1 V peak-to-peak | |
| Control variables | Position | |
| Maximum control frequency (servo cycle) | 50000 Hz | |
| Motion types | Point-to-point motion ǀ Point-to-point motion with profile generator ǀ Open-loop step operation ǀ Open-loop linear operation ǀ Wave generator | |
| Motion coordination | Coordinated multi-axis motion | |
| Reference switch input | TTL, Zero+ & Zero- | |
| Limit switch input | TTL | |
| Interfaces and operation | E-713 PICMAWalk Controller, 3 axes | |
| Communication interfaces | TCP/IP ǀ USB | |
| On/off switch | Hardware switch on/off | |
| Display and indicators | Error LED ǀ Power LED ǀ On Target LED ǀ Overtemp LED | |
| Command set | GCS 2.0 | |
| User software | PIMikroMove | |
| Application programming interfaces | C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python | |
| Linearization | DDL option (Dynamic Digital Linearization) ǀ 4th order polynomials | |
| Amplifier | E-713 PICMAWalk Controller, 3 axes | |
| Resolution DAC/voltage resolution | 20 bit | |
| Sensor | E-713 PICMAWalk Controller, 3 axes | |
| Maximum sensor interpolation factor | 524288 | |
| Sensor bandwidth | 250 kHz | |
| Electrical properties | E-713 PICMAWalk Controller, 3 axes | |
| Output voltage | -30 to +135 V | |
| Short-circuit proof | Yes | |
| Average output power per channel | 8 W | |
| Peak output power per channel | 25 W | |
| Peak output power per channel, time limit | 5 ms | |
| Average output current per channel | 150 mA | |
| Peak output current per channel | 250 mA | |
| Peak output current per channel, time limit | 5 ms | |
| Miscellaneous | E-713 PICMAWalk Controller, 3 axes | |
| Motor/actuator connector | D-sub 37 (f) | |
| Sensor connector | D-sub 37 (f) | |
| Connector TCP/IP | RJ45 socket, 8P8C | |
| Connector USB | USB socket type B | |
| Connector for supply voltage | IEC 60320 type C14 | |
| Power connection | 100 to 240 V AC ǀ 50 to 60 Hz | |
| Power entry fuse | 1 x T6,3AH, 250 V | |
| Maximum power consumption | 330 W | |
| Operating temperature range | 5 to 40 °C | |
| Overall mass | 8745 g |
An output channel corresponds to what is known as a PiezoWalk® channel. Internally, up to 4 amplifier channels of the motion controller may be involved in controlling the drive through the PiezoWalk® channel.
The specified input channels are sensor channels.
The maximum output power is limited by the power supply of the housing and the number of available channels.
E-713 modular Motion Controller system
GCS commands for E-713 modular Motion Controller system
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

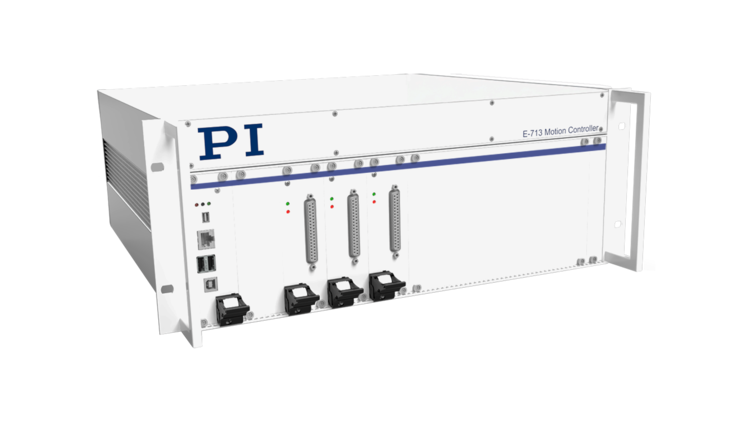

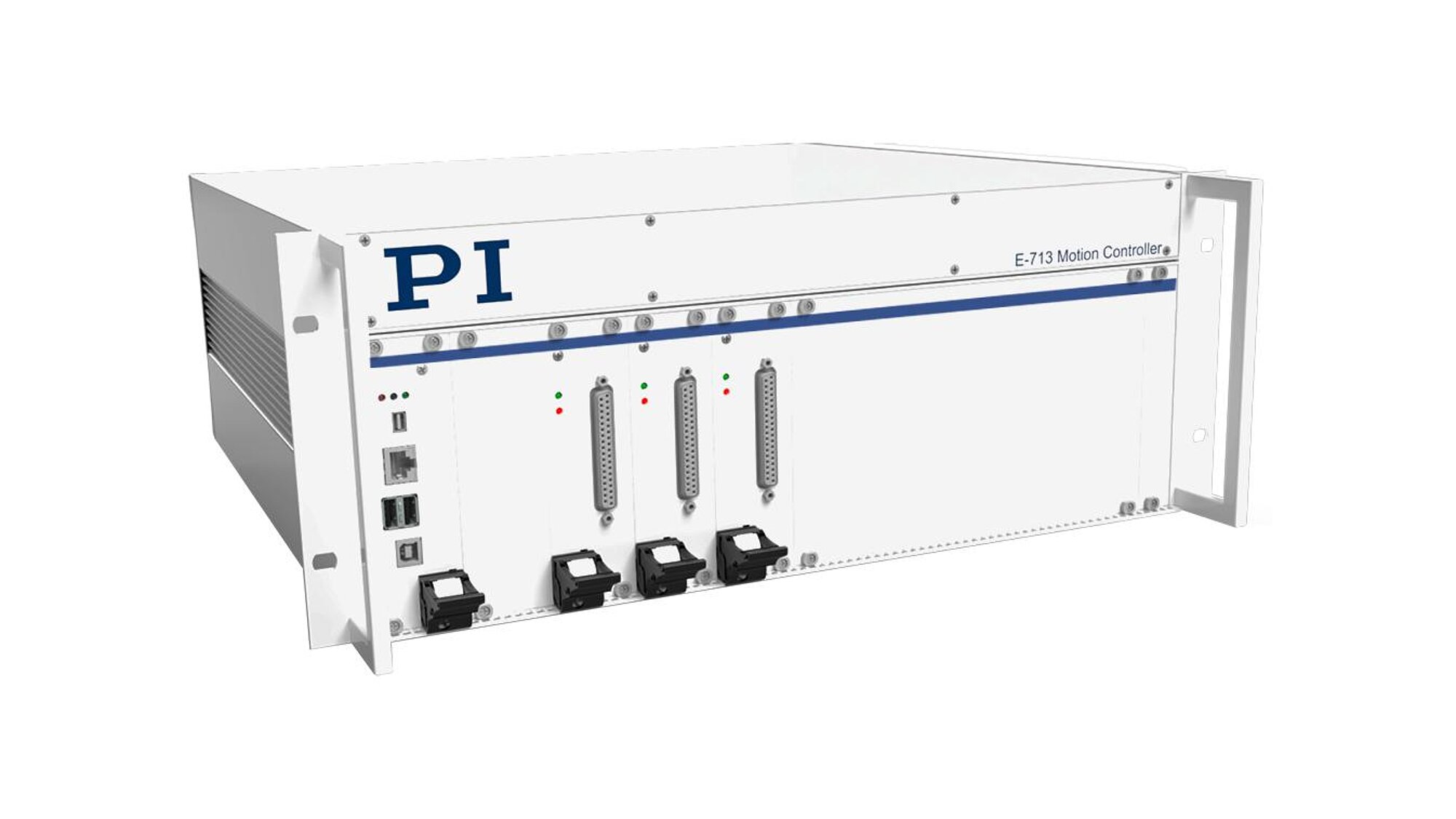

Motion controller for PICMAWalk piezo walking drives with incremental encoder; 3 axes; TCP/IP and USB communication interfaces.
This configuration consists of the following modules:
─ 1 × E-713.R2: housing
─ 1 × E-713.M1: main module
─ 3 × E-713.D41PIL: amplifier module
