N-331.1LU 新产品!

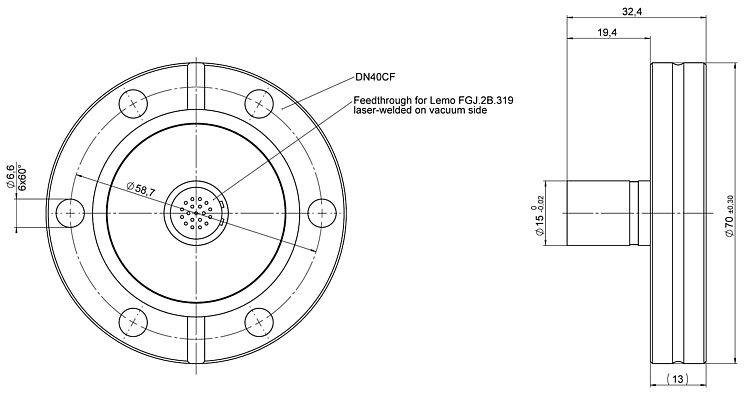

Vacuum feedthrough (drive and sensor signals), 19-pole LEMO (m/m), DN40CF
Connection of standard controllers to vacuum applications

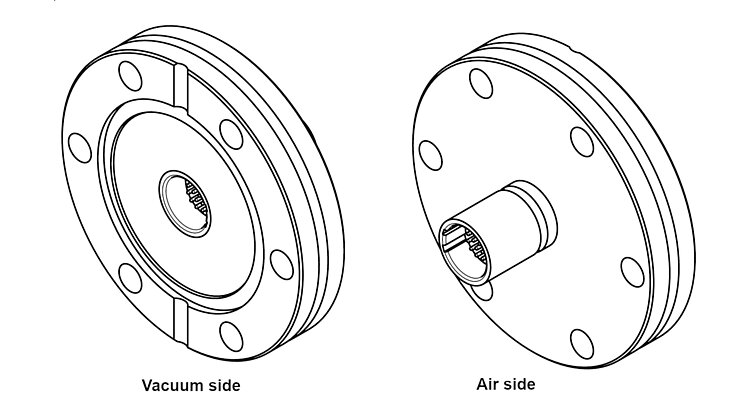

Vacuum feedthroughs are the interface between the linear actuator within the vacuum enclosure and the controller on the air side. They enable standard controllers to be connected to vacuum applications.
Air-side adapter cables are available in different lengths. They are not part of the scope of delivery for the feedthrough.
N-331.1LU | ||
---|---|---|
Flange material | Stainless steel 1.4301 | |
Seal material | Aluminum oxide ceramic | |
Leak rate | 1x10-9 | |
Test voltage | 800 V | |
Maximum current per pin | 7 A | |
Air side connector | LEMO FGJ.2B.319 | |
Vacuum side connector | LEMO FGJ.2B.319 | |
Vacuum class | 10⁻⁹ hPa | |
Operating temperature range | 0 to 50 °C | |
Maximum bake out temperature | 150 °C |
Note on test voltage: for 500 MΏ, specified value applies for direct current (DC)
Note on maximum current for each pin: 3.15 A/Pin if all pins are used
