Piezo scanner tube; piezo actuator drive; L 20 mm × OD 2.2 mm × ID 1 mm; 5 µm axial contraction; 0.7 µm diameter contraction

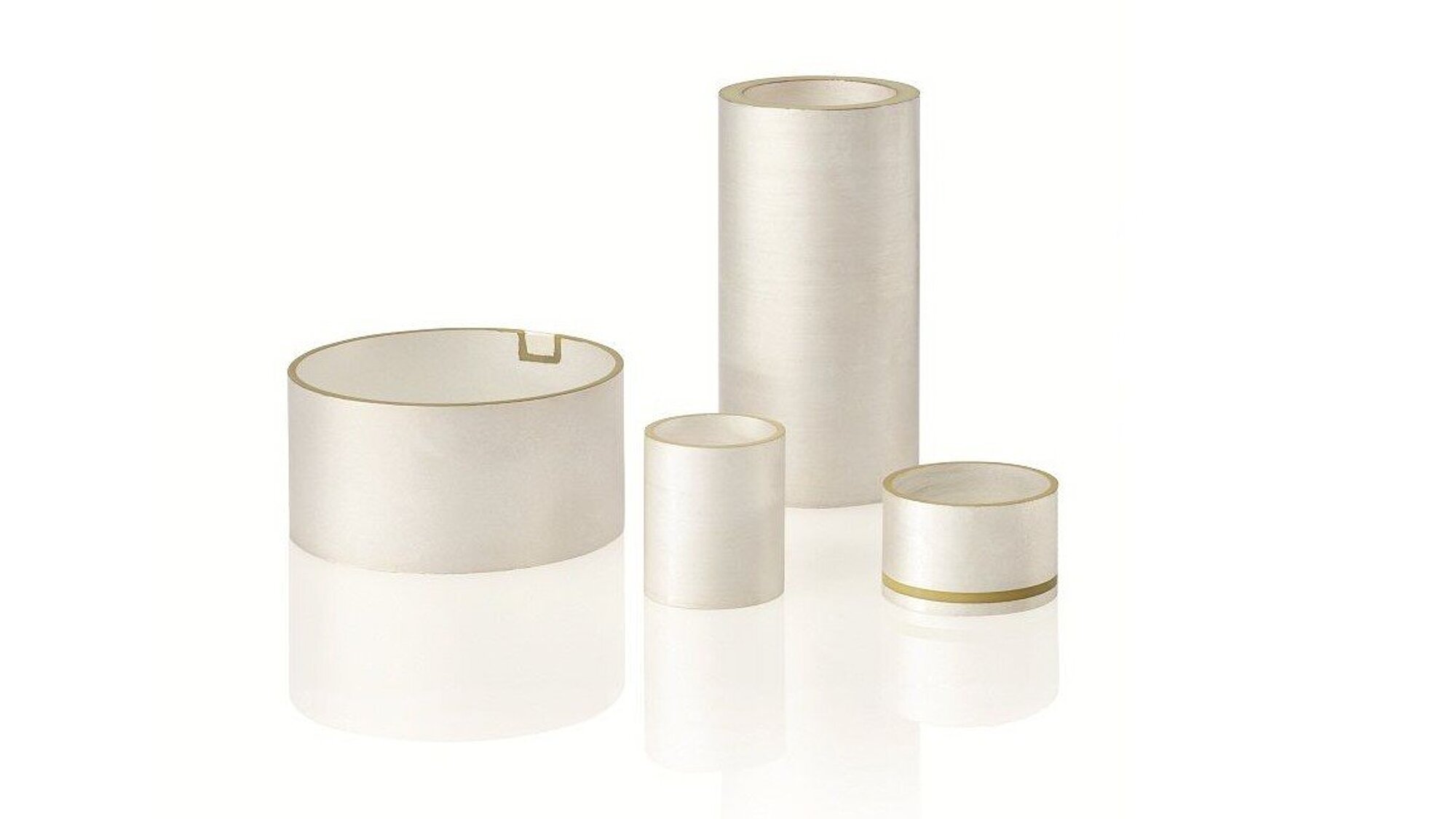

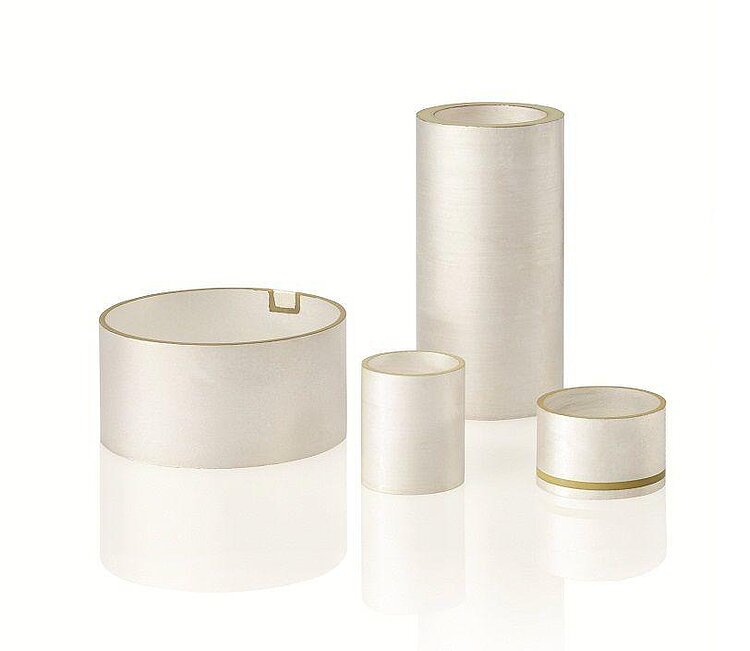

PT120 – PT140 压电陶瓷管
低负载高动态操作
- 径向和轴向位移
- 亚纳米级分辨率
- OEM应用的完美选择
- 多种设计选择
- 交货期短
规格
电容:公差为±20%,1伏峰峰, 1千赫兹, 室温下测量。
最大工作电压下的最大收缩。
压电陶瓷类型:PIC151。
正电势上的内电极。标准型为内外烧结镀银电极。可选:外电机薄膜(铜镍,金)。
询问定制设计!
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Piezo scanner tube; piezo actuator drive; L 30 mm × OD 3.2 mm × ID 2.2 mm; 9 µm axial contraction; 0.9 µm diameter contraction
Piezo scanner tube; piezo actuator drive; L 30 mm × OD 6.35 mm × ID 5.35 mm; 9 µm axial contraction; 1.8 µm diameter contraction
Piezo scanner tube; piezo actuator drive; L 30 mm × OD 10 mm × ID 9 mm; 9 µm axial contraction; 3 µm diameter contraction
Piezo scanner tube; piezo actuator drive; L 30 mm × OD 20 mm × ID 18 mm; 9 µm axial contraction; 6 µm diameter contraction
Piezo scanner tube; piezo actuator drive; L 40 mm × OD 40 mm × ID 38 mm; 15 µm axial contraction; 12 µm diameter contraction
