Round PICMA® Stack multilayer piezo actuator; 14 µm travel range (open loop); Ø 16 mm; length 16 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; solderable contacts

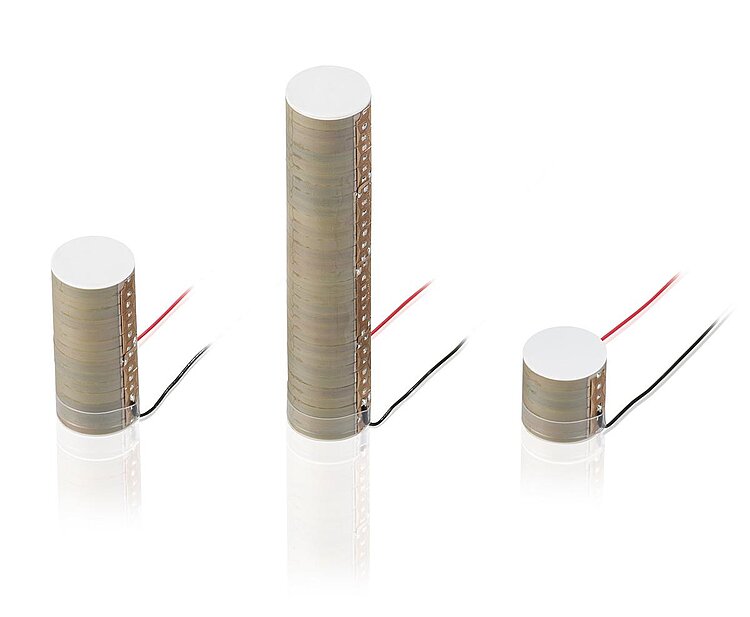

P-088 圆形PICMA® Stack多层压电促动器
高闭锁力
- 超长使用寿命
- 非常适用于动态操作
- 灵活可调整的总高度
- 不带绞线的OEM版本可供货
规格
标称行程,0至100伏时的闭锁力和刚性。
标准连接:100毫米聚四氟乙烯绝缘绞线,美国线规为28(直径为0.69毫米)。可选:若需要不带绞线的可软焊触点,请将订购编号的最后一位改为0。
压电陶瓷型:PIC252。陶瓷端板由铝制成2O3.
动态操作的推荐预载:15兆帕。
恒力的最大预载:30兆帕。
轴向谐振频率:1伏峰峰、空载、夹钳松开时测量。单侧夹紧时数值减半。
电容:公差为±20%,1伏峰峰、1千赫兹、室温下测量。
工作电压:-20至100伏。
工作温度范围:-40至150摄氏度。
询问定制设计!
下载
文件
用户使用手册PZ259
P-882 – P-888 PICMA®堆叠型多层压电陶瓷促动器、P-080 PICMA®带内孔的堆叠型多层环状促动器、P-088 PICMA®堆叠型多层压电陶瓷促动器、圆形截面
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Round PICMA® Stack multilayer piezo actuator; 14 µm travel range (open loop); Ø 16 mm; length 16 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; connecting wires
Round PICMA® Stack multilayer piezo actuator; 32 µm travel range (open loop); Ø 16 mm; length 36 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; solderable contacts
Round PICMA® Stack multilayer piezo actuator; 32 µm travel range (open loop); Ø 16 mm; length 36 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; connecting wires
Round PICMA® Stack multilayer piezo actuator; 70 µm travel range (open loop); Ø 16 mm; length 77 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; solderable contacts
Round PICMA® Stack multilayer piezo actuator; 70 µm travel range (open loop); Ø 16 mm; length 77 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; connecting wires
